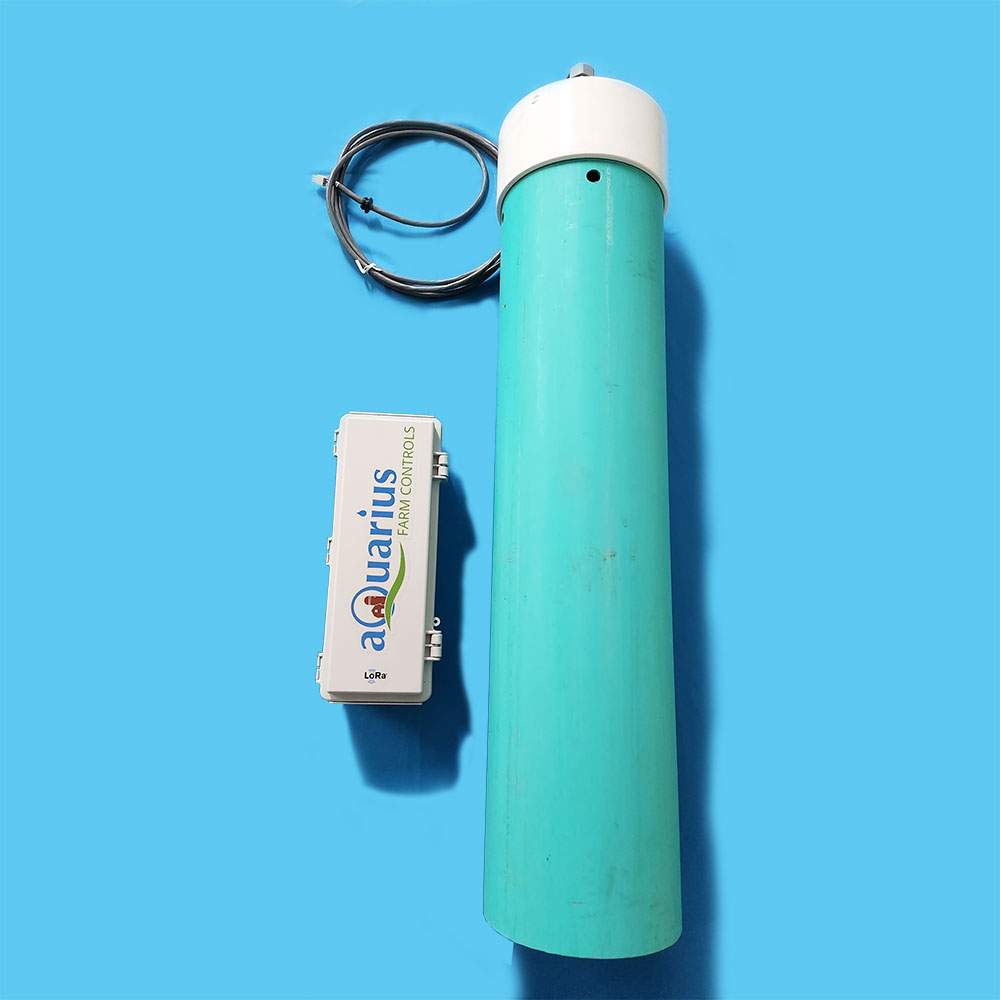

The aQ-Level Sensor measures the depth of water in flood irrigation applications. Consisting of an UltraSonic Level Sensor in a CPVC tube to keep vegetation from giving false readings, the meter may be buried at any depth to indicate water level above or below the surface.
The transmitter runs on 4 Lithium AA-size batteries, which last for multiple seasons. No bulky solar panels or large storage batteries required. The radio transmitter mounts on a pole (not included), with the sensor buried directly below.
Kit Includes:
- 1 aQ-Level Sensor water depth probe
- 2 Band clamps for securing to t-post (not included)
- 1 aQ-Sensor Transmitter
Features:
- Measures depth up to 16ft
- Accurate to 0.10 inch
- Mounted in a 6” x 30” tube to keep vegetation from giving false readings
- Easy plug-in connection
- Will measure water levels below grade for AWD dry down verification in rice field
- Tailwater pit, canal, reservoir level measurement
- aQ-Sensor Transmitter communicates with aQ-Receiver installed at pump
- Set levels can trigger pump start or stop with aQ1 Pump Control Unit, Not applicable with aQ2-Lite
- Normal operating temperature : -40 to 149 degrees F
- Easily mounts to T-Post or to PVC mounted over T-post (not included)
- Can also be mounted with the aQ-Level Support Plate
- Reads and reports data from 1 ultrasonic level sensor
- No additional data plans required (included in Well Connectivity Plan)
- Shipping Size: 32”x9”x9”
- Shipping Weight: 8 Lbs
